LILYGO® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz Amplifier

SKU : cvlidfggv2og00ev5sq0

$48.99

Color

Ships From

Clear

Fast Shipping

Your orders are shipped right to your doorstep

Customer Support

We aim to exceed expectations by providing exceptional customer support.

Secure Payment

Your payments are secure with our private security network.

Description

SPECIFICATIONS

Brand Name: Lilygo

Certification: None

Compatible Audio & Video Equipment Style: Amplifier

Dimensions (WxHxD)): 60*30*20mm

High-concerned Chemical: None

Model Number: LoRa32 V2.1_1.6.1 version

Package: Yes

Weight: 20g

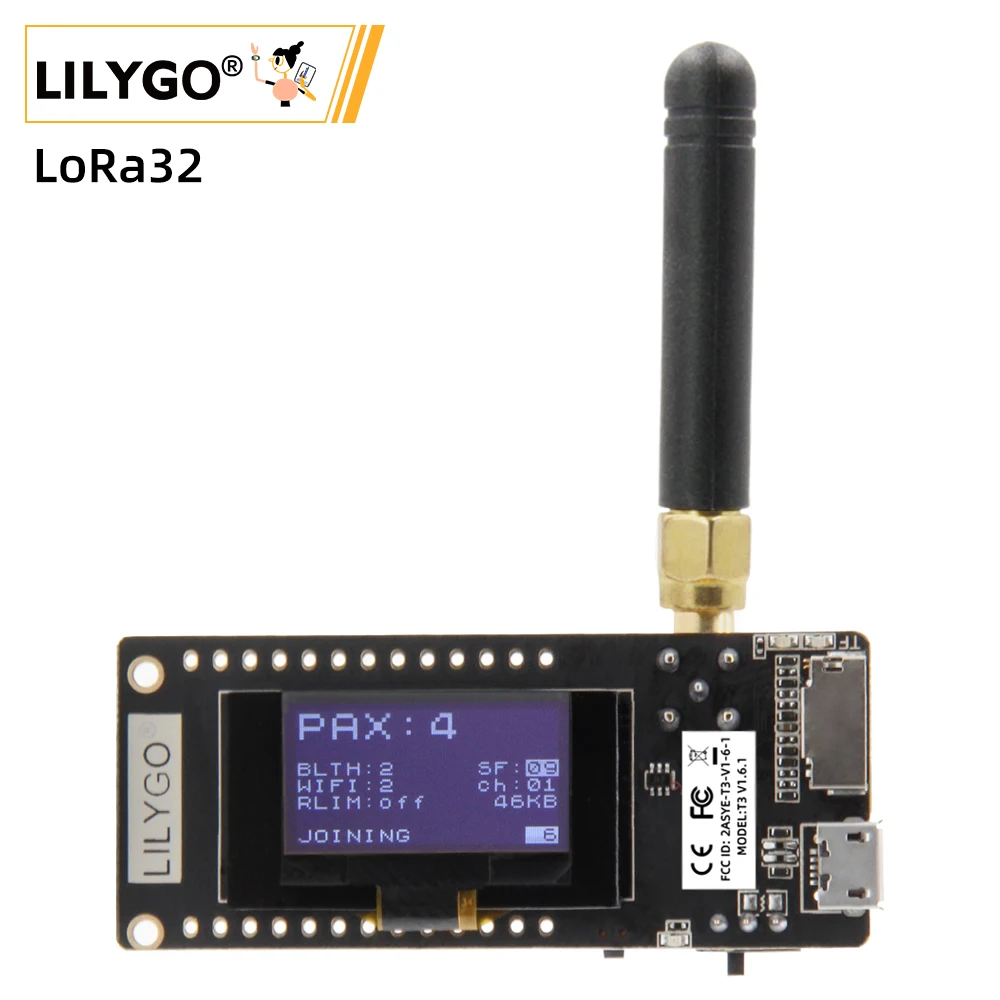

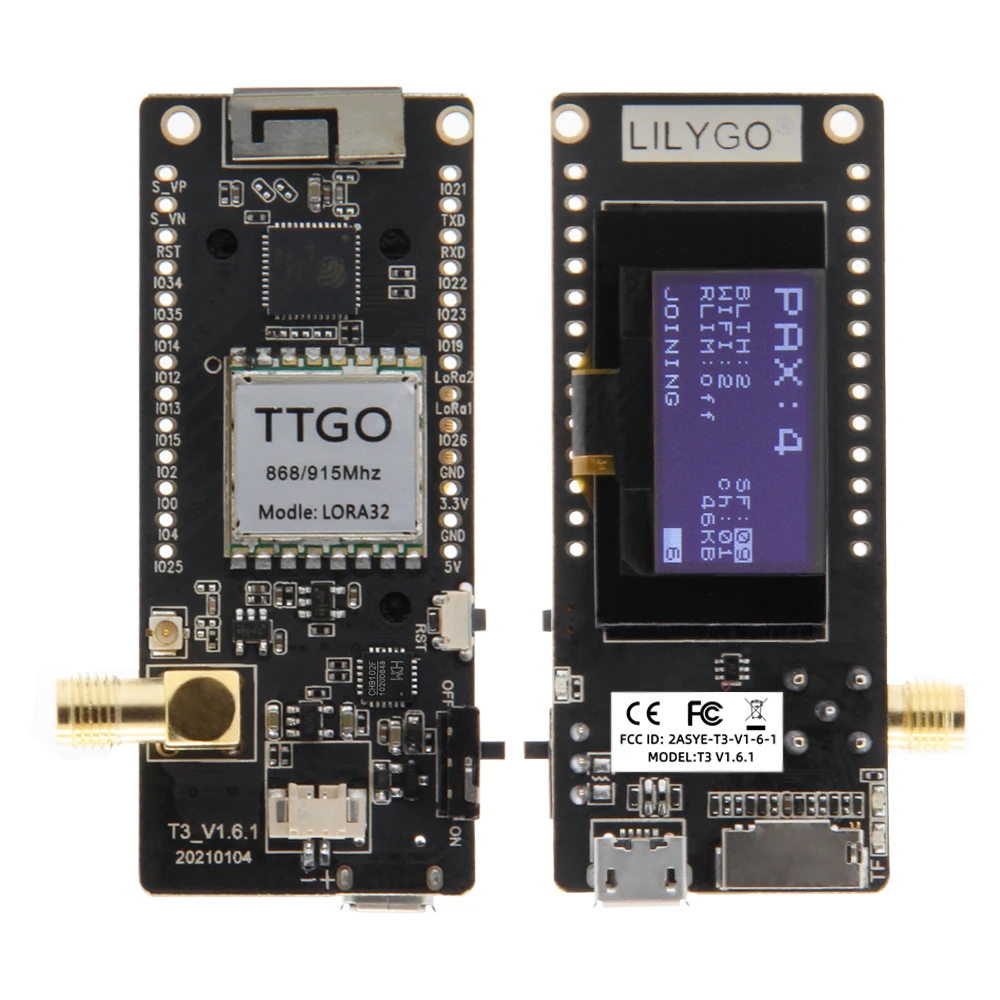

LoRa32 V2.1_1.6 Introduce

We have enhanced the capabilities of the TTGO LoRa V2.1 board by adding an SMA antenna.

Additionally, we have modified the power switch interaction mode for improved performance. The SMA antenna improves signal transmission.

More information

Github:
LILYGO-LoRa-Series-Github

Cooperate-Paxcounter-Github

Cooperate-Disaster Radio-Official

Cooperate-Disaster Radio-Github

Cooperate-Disaster Radio V0.2.0-Github

⚠️Notice: The shipping list does not include battery and SD card.

⚠️Note:

The Meshtastic firmware is not adapted to the TCXO version yet.

You can add the below sentences in the source codes to make it work.

https://github.com/Xinyuan-LilyGO/LilyGo-LoRa-Series

Or you can ask in the github or community of Meshtastic:

https://github.com/meshtastic/firmware/issues
https://meshtastic.discourse.group/

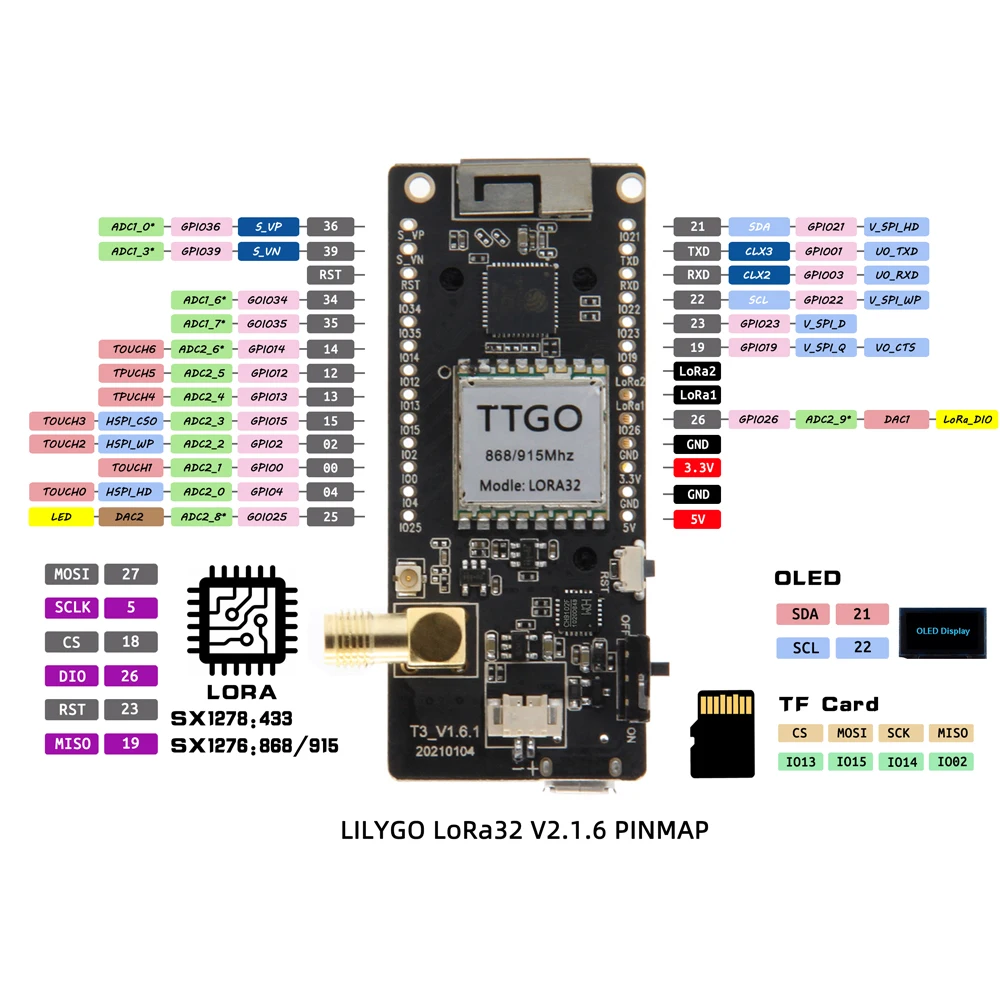

LoRa32 Specifications
MCU	ESP32
Flash	4MB
PSRAM	8MB
Wireless Connectivity	Wi-Fi 802.11
Wireless Connectivity	Bluetooth V4.2 + Bluetooth LE
Programming Platform	Arduino-ide、Micropython
Onboard Functions	TF Card Slot USB or 3.7V Lipo Battery Power Supply Battery Switch
Onboard Button	Reset + Boot

Screen Specifications
Type	OLED	Resolution	128 x 64
Drive	SSD1306	Size	0.96-inch Diagonal
Interface	I2C	I2C Interface	SDA–IO21 SCL–IO22
Text Color	White	Background Color	Blue

Low Power LoRa Transceiver
LoRa Module	SX1276	SX1278
Frequency Bands	868/915/923MHz	433MHz
High-efficiency PA	+14dBm	+14dBm
Low RX Current	9.9mA	9.9mA

LoRa32

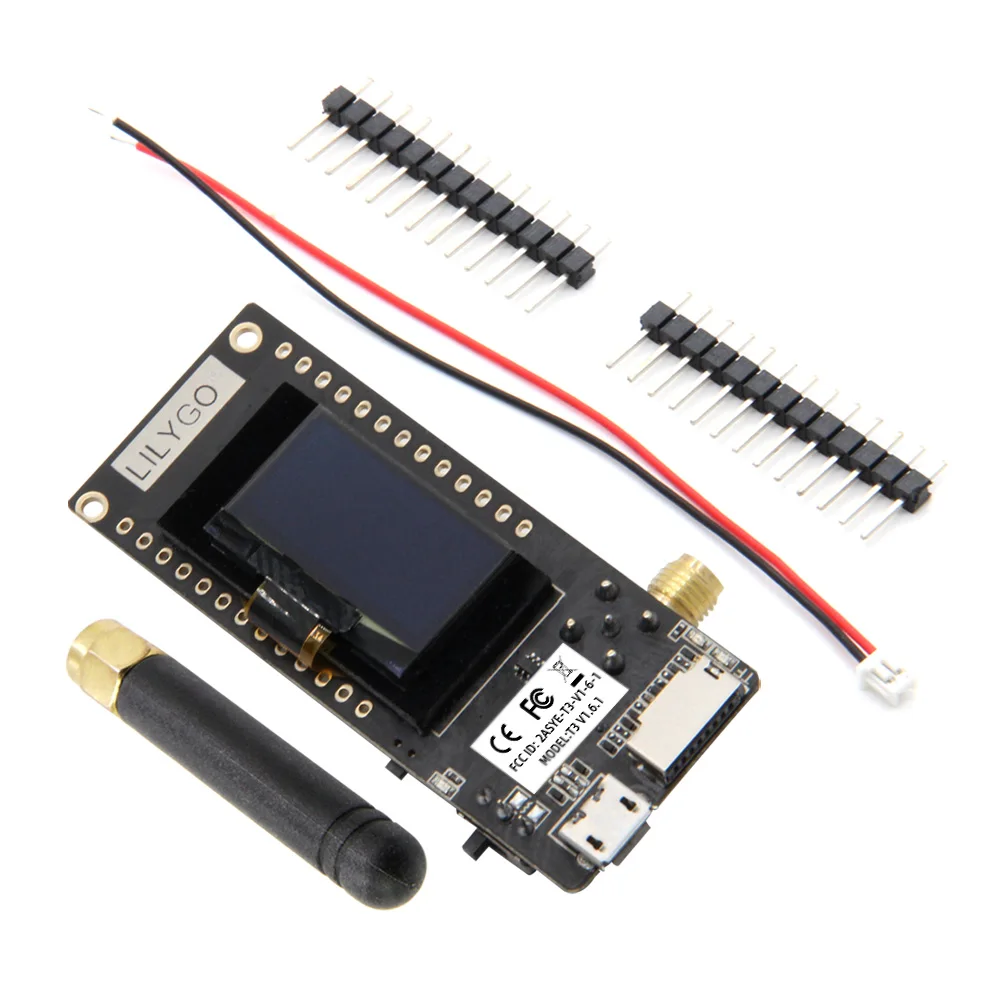

	What’s in the box?
	1 X LoRa32 Module
	1 X LoRa Antenna
	2 X Pin
	1 X Power Cable(Jst 2pin 1.25mm)

Additional information

Color	SX1276 915MHz
Ships From	United States
